商品の詳細:
|
| 製品名: | Kingway Atex Zone 2 防爆ディーゼル発電機セット | 危険区域: | 地帯2 |
|---|---|---|---|
| タイプ: | 爆発防止の静かな発電機 | リフティングフレーム: | DNV GL 2.7-1 |
| 電圧: | 220V、380V、230V、400V | スピード: | 1500RPM, 1800RPM |
| 応用: | ガス田と油田、海洋と陸上など | 保証: | 14ヶ月/2000時間 |
| ハイライト: | 60KVA ATEX certified diesel generator,explosion proof diesel generator set,offshore platform diesel generator |
||

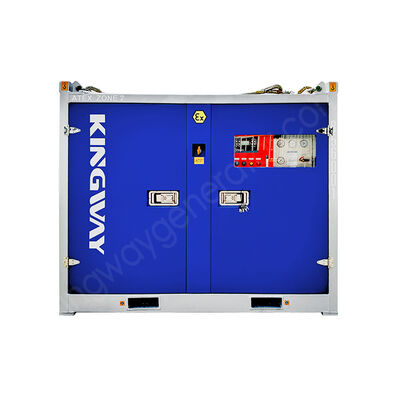

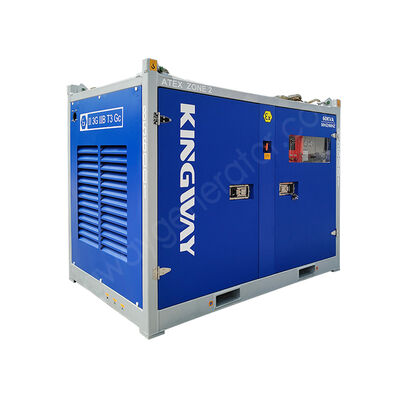

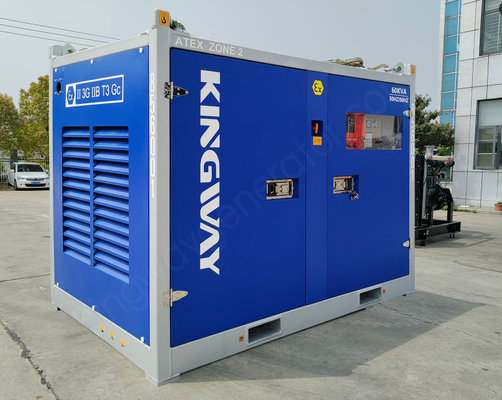

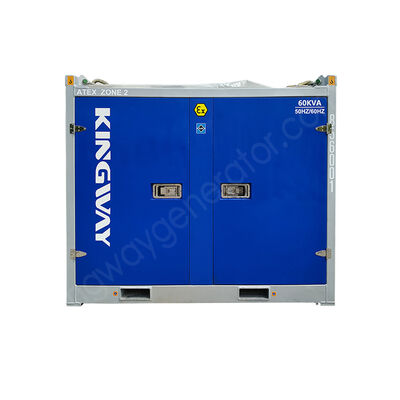

Kingway ATEX Certified Zone 2 Ex Proof equipment is well designed for applications in Hazardous Area ( Zone 2 ) use in Oil&Gas industry for onshore and offshore areas. The ex-proof equipment can be also eqipped with the DNV Standards certificate 2.7-1 according to clients' need.
Kingway ATEX Explosion Proof Equipment will be compliant to EN60079 & related ATEX Standards and ATEX Directive 2014/34/EU.
The equipment will give a<DECLARATION OF CONFORMITY>which is signed by the manufacturer according to the ATEX directive.
BV will do the third party inspection, and will issue the BV third party inspection report, and make the following summary. The equipment is compliant to EN60079 & related ATEX Standards and ATEX Directive 2014/34/EU, and is suitable to be used in Zone 2 IIB T3 Hazardous Area.
| Feature | Detailed Configuration |
|---|---|
| Power Output | Range from 15kVA to 1000kVA per unit; multi-unit parallel capability. |
| Application Area | Hazardous area zone 1 / zone 2 |
| Engine brand | Cumins/Perkins/Kubota |
| Controller | Deepsea/ComAP |
| Starting System | Electric/Hydraulic/Spring Start |
Q1: What about the delivery time?
A: The lead time is different accrording to different products. Usually our Atex ex-proof equipment needs around 12-14 weeks.
Q2: Can the generator operate in extreme temperatures?
A: Yes, we provide custom cooling systems, including specialized radiators or heat exchangers, for operational environments ranging from -20°C to +50°C.
Q3: How often is maintenance required?
A: Maintenance cycles depend on different products and projects. We provide a tailored maintenance schedule and digital monitoring tools to track performance and predict service intervals.
