商品の詳細:
|
| 寸法: | 発電機用の 500KW 抵抗負荷バンク | 定数波動量: | 380V、400V、415Vなど |
|---|---|---|---|
| ロードステップ: | 1、2、2、5、10、20、20、50、100、200、200KW | 正確性を表示します: | 0.5クラス |
| 保護等級: | IP23 | 冷却モード: | 強制される-空気-冷却した |
| 目的: | 発電機のテスト | タイプ: | 電気試験装置 |

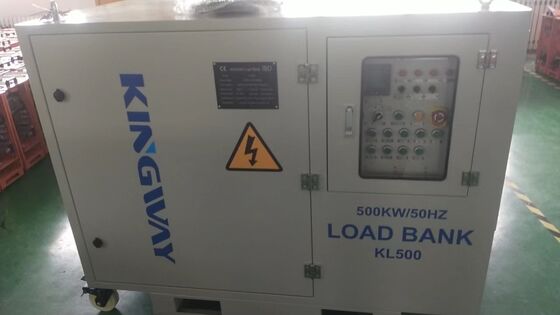

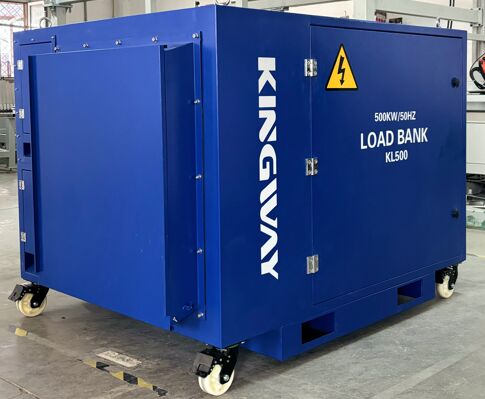

Kingway Load Bank product is an well developed electric power load testing and adaptive load-following testing equipment. It seamlessly integrates dry-type load modules with automated measurement and control modules, enabling comprehensive testing of generator sets and evaluation of their power output capacity while monitoring electrical parameters.
The equipment can be used in conjunction with a computer to perform generator set testing and adaptive load-following. During testing, it can generate data tables and curves, and supports printing functions, making the load distribution testing more versatile, intelligent, and scientific. It provides a complete solution for generator set testing and adaptive load-following testing.
| Rating voltage/frequency | 400VAC power 500KW; 3 phase 4 wire, 50Hz/60Hz |
| Max Load Power | 510kW |
| Load Resolution | Resistive Load: 11 steps, 1, 2, 2, 5, 10, 20, 20, 50,100, 100, 200KW |
| Power Factor | 1 |
| Load Tolerance (overall) | ±3% |
| Load Tolerance (three phase) | ≤3% |
| Display Accuracy | 0.5 class |
| Communication Interface | RS232/RS485 |
| Insulation | F |
| Ambient Temperature | -20°C～+50°C |
| Way of Working | Continuous Working |
| Warranty | 12 months |
