商品の詳細:
|

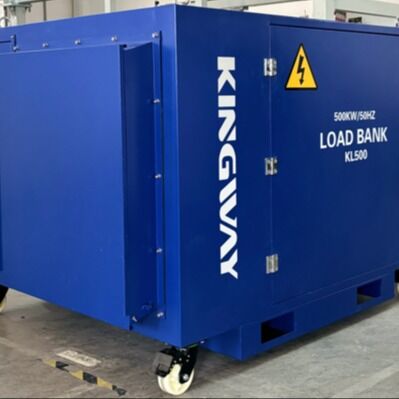

| ハイライト: | portable resistive load bank,adjustable step load bank,high-precision resistive load |
||
|---|---|---|---|
| Technical Specifications | |
| Rated Power | 500KW |
| Rated Voltage | 400V |
| Load Step | Respectively: 1, 2, 2, 5, 10, 20, 20, 50, 100, 100, 200 KW |
| Frequency | 50/60HZ |
| Insulation Class | F Class |
| Key Features | |
| High-Quality Resistors | Alloy Resistors |
| Cooling System | Forced-air Cooling |
| Control Modes | Local Manual Control or RS232/RS485 |
| Safety Protection | |
| Over-temperature Alarm | Automatic unload and alarm when temperature is over safety thresholds |
| Fan Failure Protection | Machine could not load testing before power of fan is power on |
| Emergency Stop | User can press emergency stop button in panel to unload immediately when load bank is abnornal while working |
| Short Circuit Protection | The load circuit is equipped with a fuse to avoid damage to the equipment by short-circuiting the load or excessive current |
| Applications | |
| Generator Set Testing | Prevent "Wet Stacking" and perform full-load exercises |
| UPS & Battery Bank Maintenance |
Periodic discharge testing to verify actual capacity |
| Data Center Acceptance | Simulate server heat and electrical loads for comprehensive commissioning |
| R&D/Laboratory | For performance burn-in and stress testing of power electronics |
